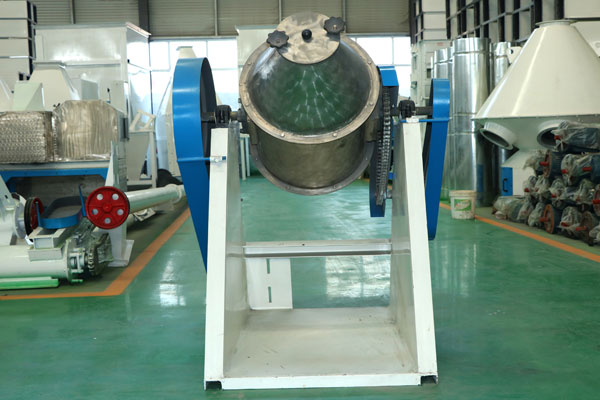

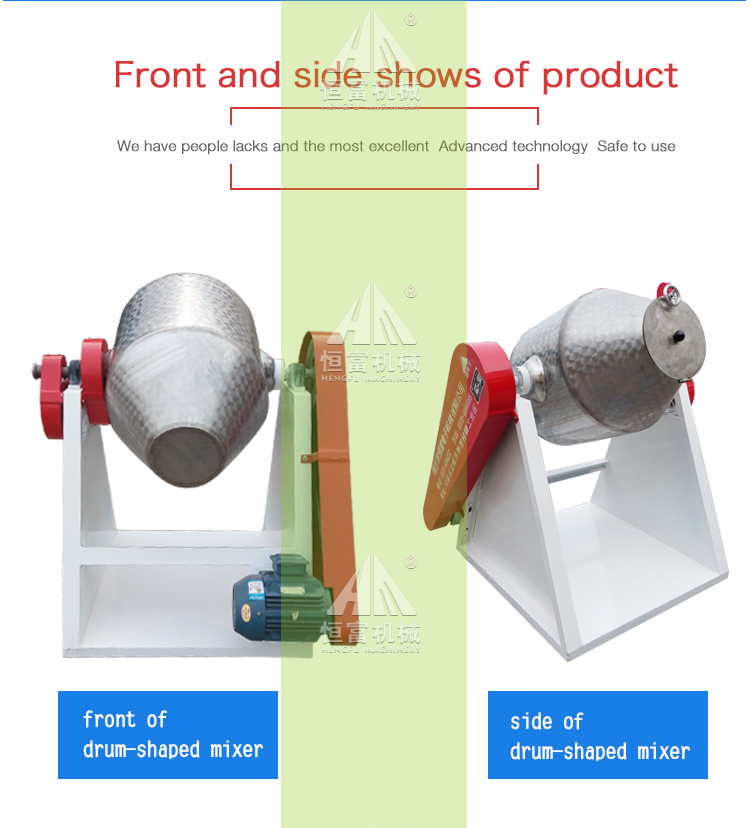

GH 50/100kg animal feed additive drum mixer
Posted by Animall Feed Blok Making Machine | updatetime 2019-10-29 11:18

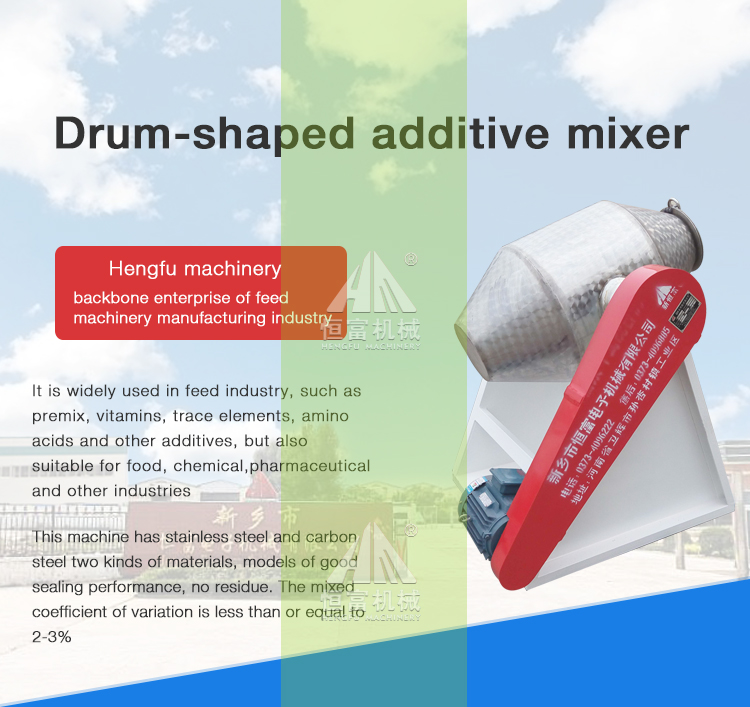

1, Drum-shaped additive Mixer is widely used in mixing the addictives
such as antioxidant, antibiotic, toner, mildew preventive in feed industries,
2, Drum-shaped additive Mixer is also suitable for food, chemical, medicine industries.
3, Drum-shaped additive Mixer has two types of stainless steel and carbon steel materials,
this kind of machine has good sealing capability, and no residue ,
mix evenness degree CV ≤ 2-3%
Main Specifications of Mini drum shaped paddle mixing machine for Feed additives mixing
| Model | GH-25 | GH-50 | GH-100 | GH-150 |
| Transmission Type | Belt drive | Belt drive | Belt drive | Belt drive |
| Power(kw) | 1.1 | 1.5 | 2.2 | 4 |
| Machine dimensions(mm) | 1050*1000*1450 | 1150*1050*1550 | 1350*1050*1250 | 1600*1200*1900 |
| Capacity(kg/batch) | 25 | 50 | 100 | 150 |
| Mixing uniformity CV(%) | ≤2-3 | ≤2-3 | ≤2-3 | ≤2-3 |
| Mixing time | 15min | 15min | 15min | 15min |
| Weight(kg) | 110 | 140 | 160 | 190 |
| Steel thickness | 1.5mm | 1.8mm | 2.0mm | 2.0mm |
| Drum Speed(r/min) | 21 | 21 | 21 | 21 |
| Inside paddle speed(r/min) | 252 | 252 | 252 | 252 |
