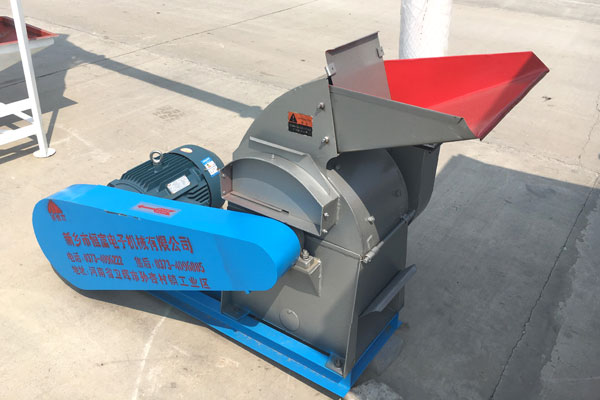

9FQ small feed hammer mill grinder

Animal feed hammer mill:

It widely used in all kinds of crop stalk,cotton firewood, ricestraw, clover, peanuts shells, rice husk cotton seed fur, etc.

This series of machine have advantage of compact structure, strong and durable, safe and reliable, easy operation.

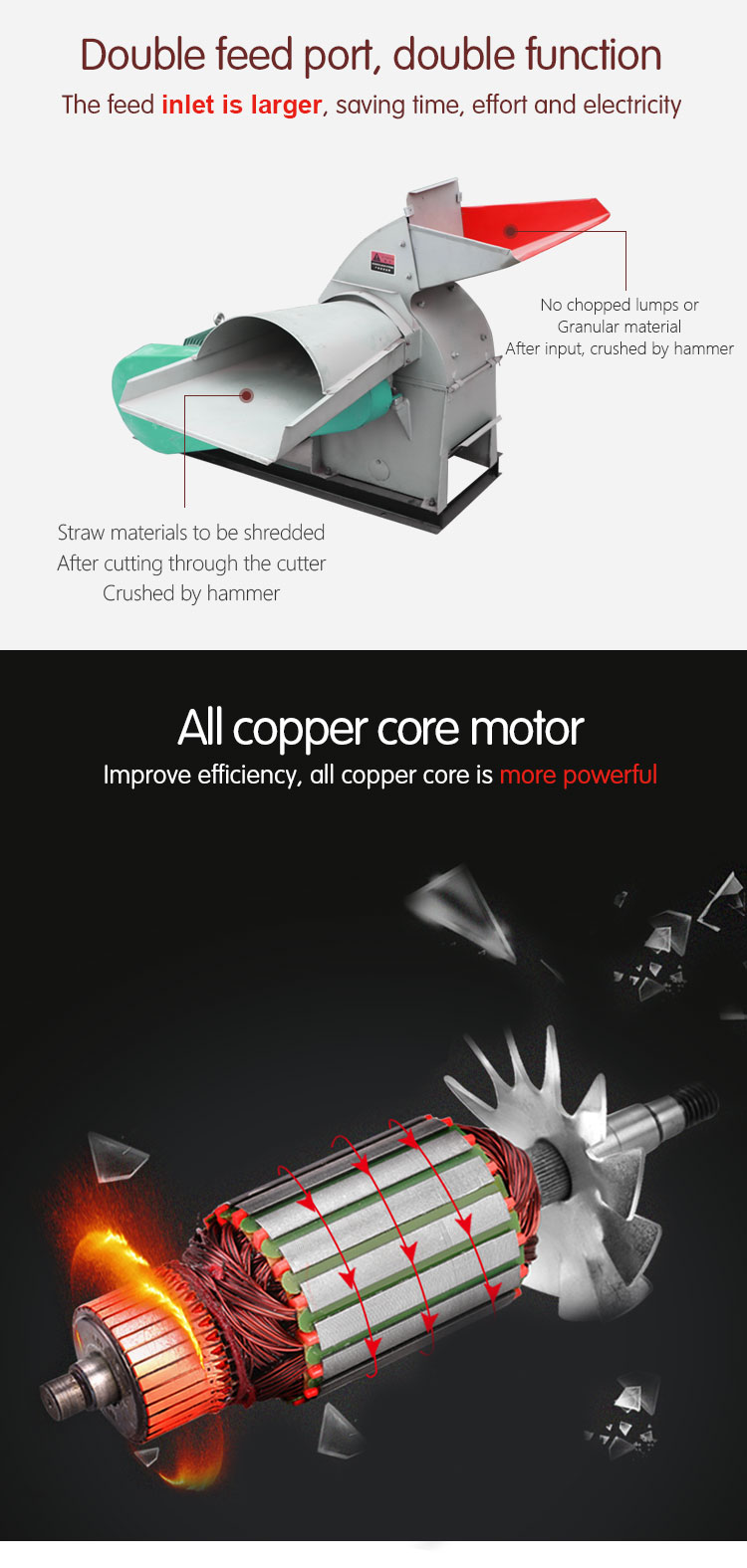

Lower noise and vibration, high effiency and low energy consumption,etc. With double discharge to connect material and convenience to use ,

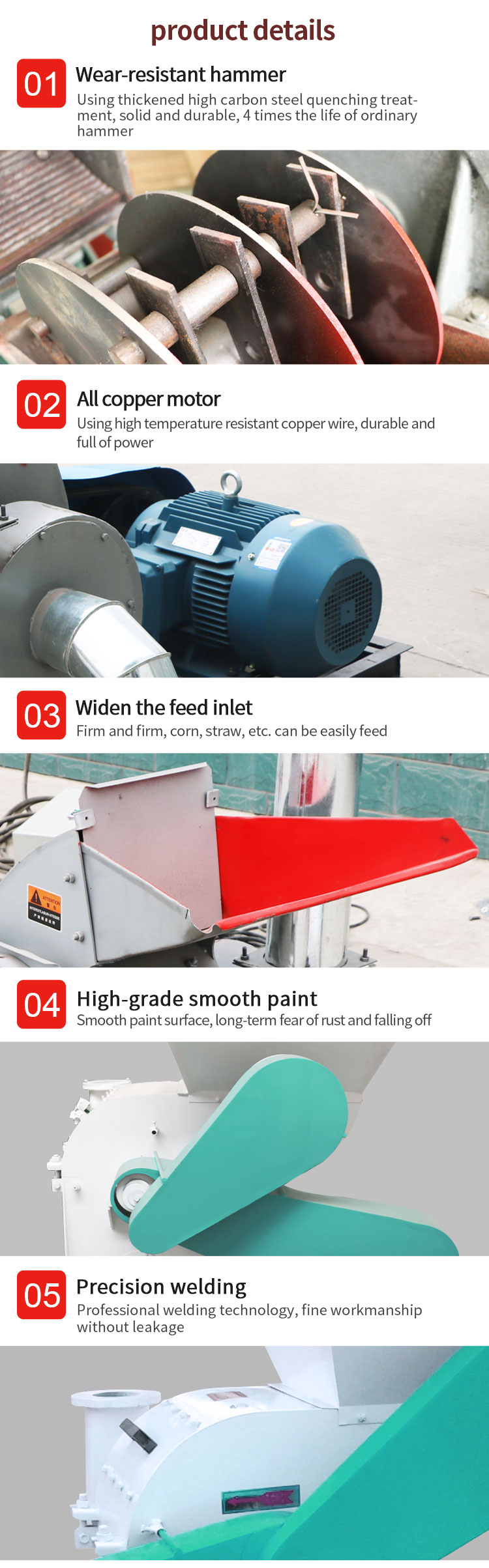

the spare part of the machine completely adopt quality material, outsourcing parts adopting domestic optimal products, the whole machine quality is reliable, long-lived..

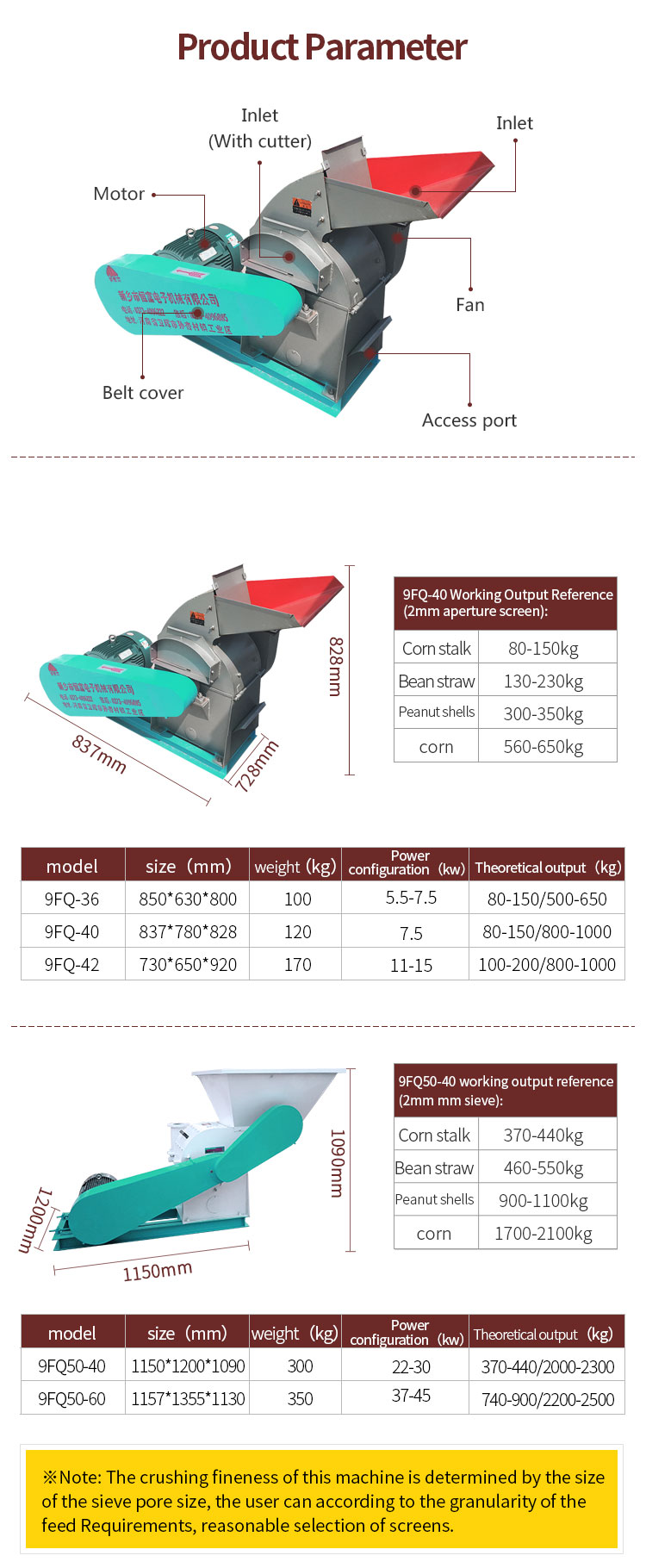

Model	Power kw	Capacity for corn(kg/h)	Capacity for corn straw	Hammer QTY	Sieve Size (mm)	Dimesions (mm)	Weight
9FQ-36A	10hp	500-650	80-150kg/h	12pcs	0.5-5	850*630*800	100kg
9FQ-36B	5.5-7.5	500-650	80-150kg/h	12pcs	0.5-5	850*630*800	100kg
9FQ-40	7.5-11	800-1000	80-150kg/h	12pcs	1.2-3	837*780*828	120kg
9FQ-42	11	800-1000	100-200kg/h	16pcs	1.2-3	730*650*920	170kg
9FQ50	15	1000-1200	150-250kg/h	16pcs	1.2-3	1100*930*980	260kg
9FQ50-40	22-30	2000-2300	370-440kg/h	24pcs	1.2-3	1150*1200*1090	300kg
9FQ50-60	37-45	2200-2500	740-900kg/h	36pcs	1.2-3	1157*1355*1130	350kg
