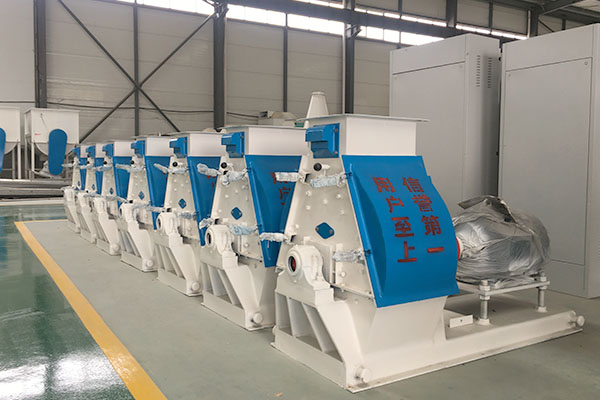

SFSP animal feed corn grinding machine water drop hammer mil

Characteristic of Maize Grinding Hammer Mill

1.       crush room at bottom of the use of two-hit designed  to increase production by more than 15%, to crush a more uniform size.

2.       room for the water drop hammer mill,to elimination of circulation and increase output

3.       through the adjustment of screener space,to achieve coarse or fine crush,so live up to a dual-purpose machine

4.       mill rotor balancing by check,equipment operation less vibration,less noise,more stable

5.       vacuum melting and hardening the surface of hammer pin,plate with high-quality carbon structural steel manufacturing,to extend the service life,reduce the consumption of parts

6.       direct drive,a new snake-coupling spring,compensation,to avoid bearing have a fever

7.       adopt of imported high-quality bearings,long life and smooth operation

8.       impeller feeder equipped with feed conversion and screw conveyor feed speed and other forms



The SFSP Series



Model	SESP56*36	SFSP56*40	SFSP708*40
Rotor diameter(mm)	560mm	560mm	708mm
Crush room width(mm)	360mm	400mm	400mm
Rotate Speed(r/min)	2900	2900	2900
Number of Hammers	40	40	40
Capacity(t/h)	1-3	2-5	3-8
Main Power(kw)	22	37	55
Weight(kg)	800	920	1600
Dimension(L*W*H)	1430*700*1000mm	1500*700*1000mm	1850*750*1250mm
